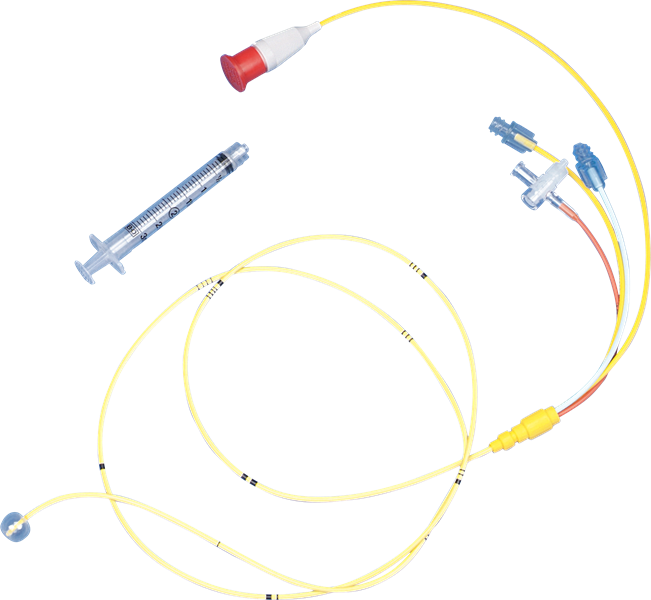

Thermodilution Catheters

Available with safety wedge catheter that acts as a pressure relief valve to prevent over-pressurization of balloon
Medication lumen permits blood sampling, fluid and drug administration and central venous pressure monitoring (7 Fr catheter only)
Thermister connector compatible with commonly used cardiac output computers to monitor pulmonary artery blood temperature
PA distal lumen allows mixed venous blood sampling and measurements of pulmonary artery/capillary wedge pressure
Distal balloon provides excellent symmetry and tip coverage for safe flotation of catheter and pulmonary capillary wedge pressure measurements
Injectate lumen carries cardiac output injectate solution to the right atrium, accommodates blood sampling, fluid and drug administration and attachment to pressure transducer for monitoring right atrial pressure
Packaged sterile
Contains latex unless noted otherwise

INDICATIONS

PRODUCT DETAILS

Product No.**	Description	Quantity	California Customers
** Add “5” to any product number for 5/Case (Ex. DTD1704HX5)
* WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
DTD1504HX	Thermodilution Catheter, 5 FR, 4 Lumen	30/Cs
DTD1604HX	Thermodilution Catheter, 6 FR, 4 Lumen	30/Cs
DTD1704HX	Thermodilution Catheter, 7 FR, 4 Lumen	30/Cs
DTD1704HDX	Thermodilution Catheter, 7 FR, 4 Lumen, Safety Wedge	30/Cs
DTD1704HCX	Thermodilution Catheter, 7 FR, 4 Lumen S-Tip	30/Cs
DTD1755HDPX	Thermodilution Catheter, 7.5FR, 5 Lumen Safety Wedge w/.028 Pacing Port	30/Cs	*
DTD1602HX	P.A. Monitoring Catheter, 6FR, 2 Lumen	30/Cs
DTD1603HX	P.A. Monitoring Catheter, 6FR, 3 Lumen	30/Cs
